产品介绍

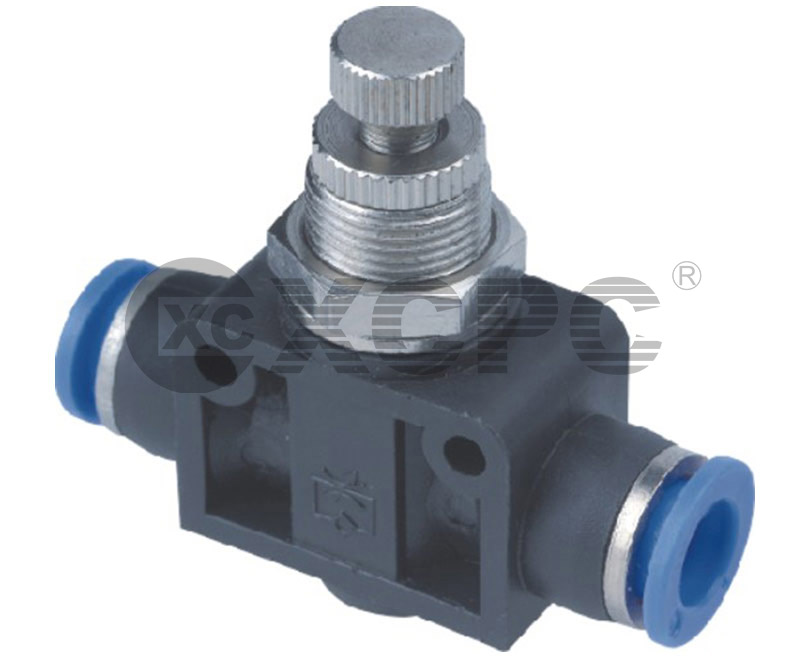

节流阀




Accurare regulation of an optimal airflow rate for precise motioncontroI.
Copact and space-saving configuration provides a func tiona lly w ide
range of airflow rates.
Available in control method type for metering of unidirecrional airflow
either entering into or exhausting out of a driving device.

+ Sub-series



订购码

产品规格

规格



使用流量
Air空气
使用压力范围
0~150PSI
0~9.9KgF/cm2(0~990KPa)
负压
-29.5 in Hg
-750mm Hg (10Torr)
工作温度
32~140°F
0~60℃
外形尺寸

(1)Model Type
(2)Tube Outer Diameter(ΦD)

Metric Size
Code
04
06
08
10
12
14
16
ΦD
4mm
6mm
8mm
10mm
12mm
14mm
16mm



(3)Thread Type & Size

Metric Size
Code
M5
M6
ΦD
M5×0.8
M6×1
Tube(Inch)-Thread(R)
01
02
03
04
R1/8"
R1/4"

R3/8"
R1/2"



G(PF)Thread
Code
G01
G02
G03
G04
Size
G1/8"
G1/4"
G3/8"
G1/2"
