产品介绍

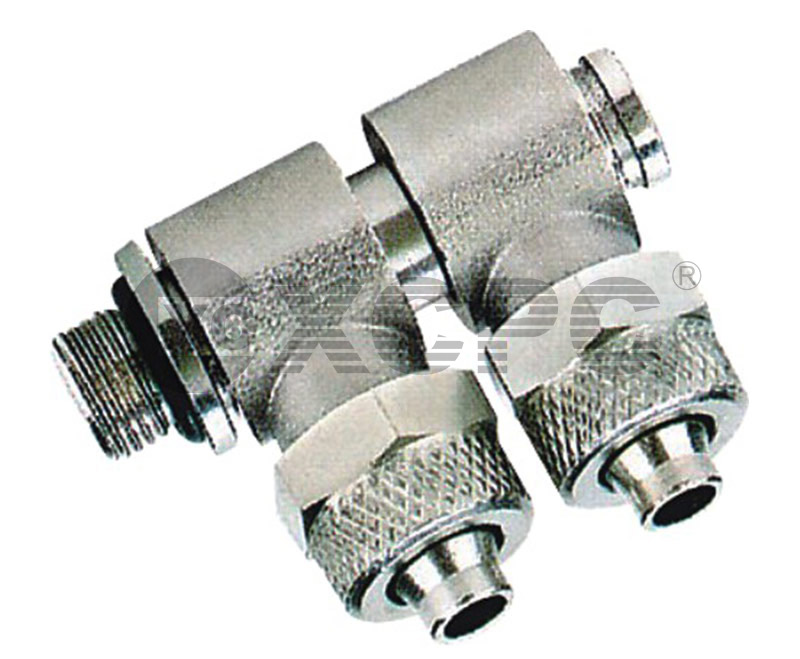

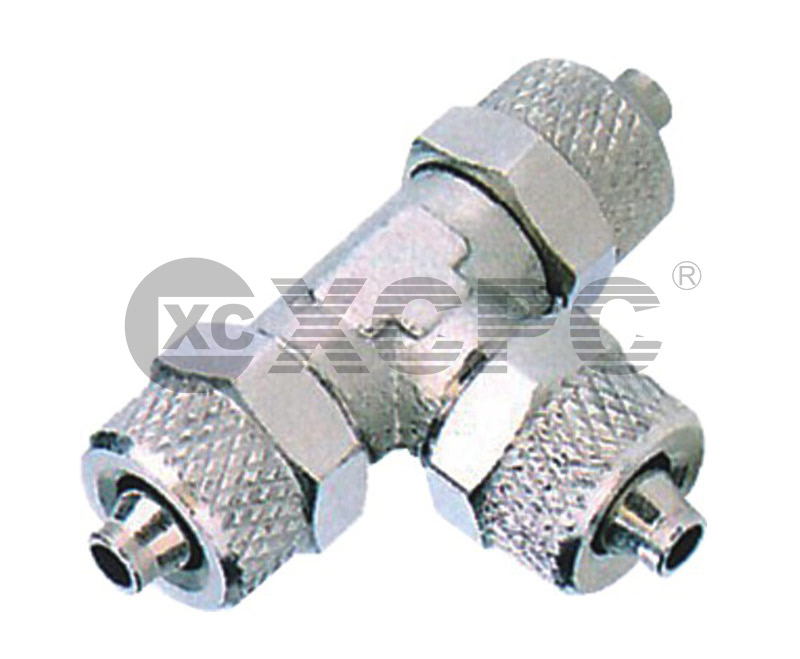

快速管接头




The rapid fittings can be used with rigid nylon tubes.

A Iocking nut is provided and can be tightened both manually and With a spanner.

The special shape of the guiding cone ensures that the tube can not be accidentally cut.

+ Sub-series



产品规格



Material
Body and collet:Nickel-plated Brass O-ring:NBR(other material is available on request)
Threads
BSPT,BSPP,NPT,Metric threads
Pressure
0.8-16bar(see tube)PU,PE,Nylon 6-11-12
Fiuid
Compressed air
Temperature
-10 ~60℃ (see data of used tubing)

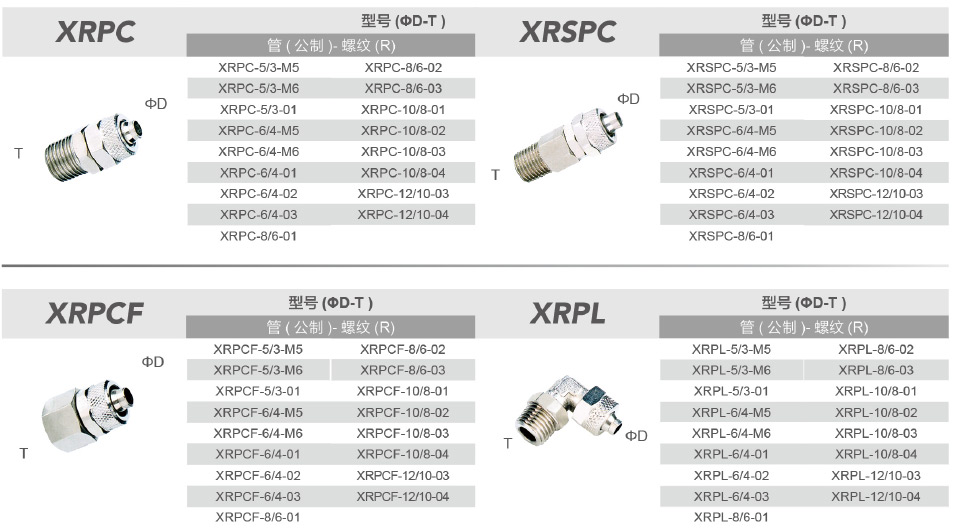

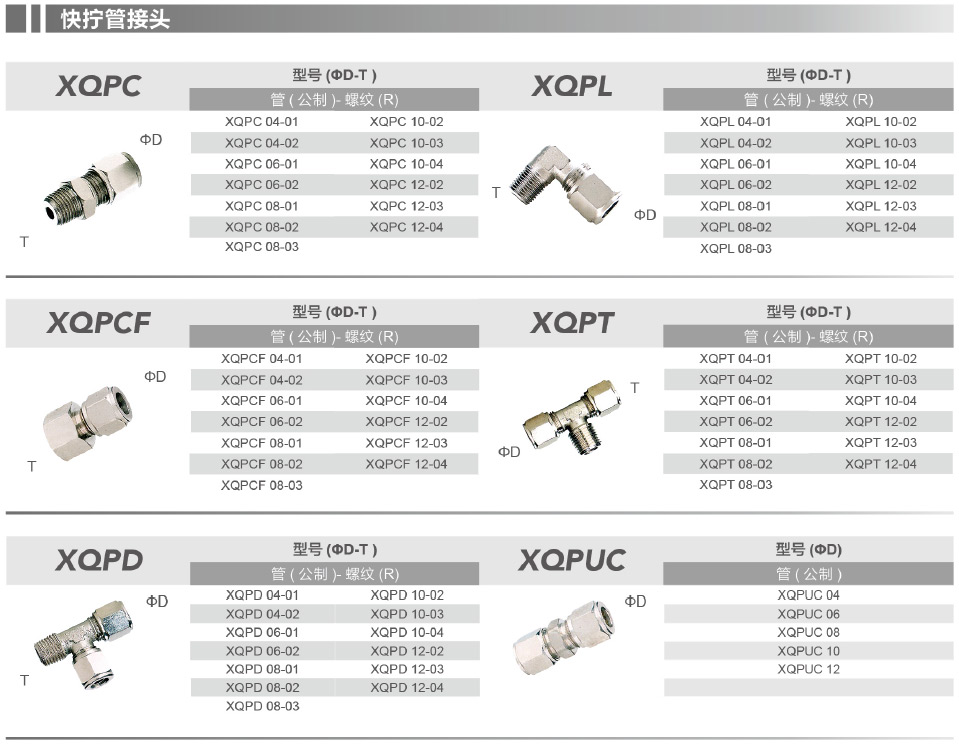

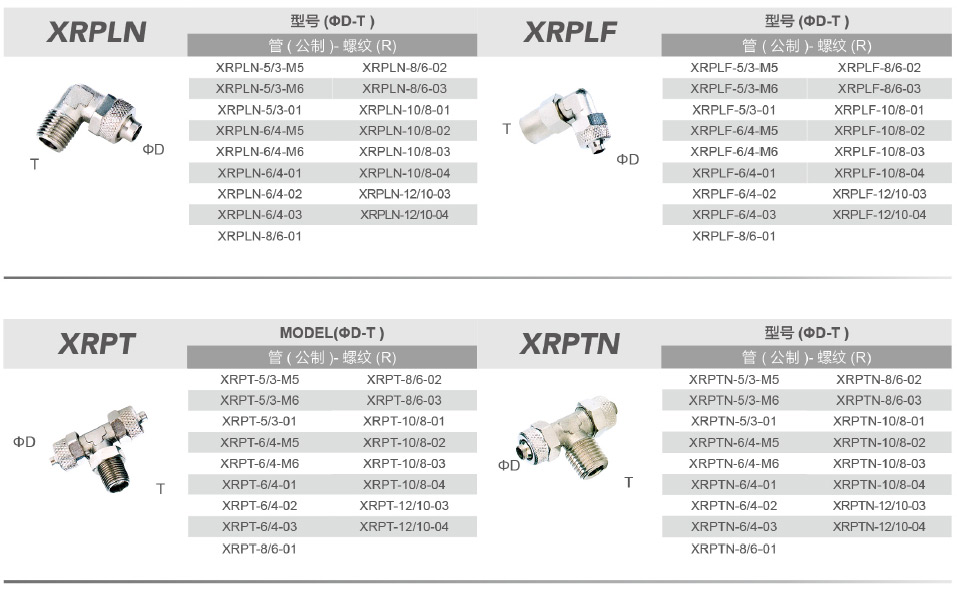

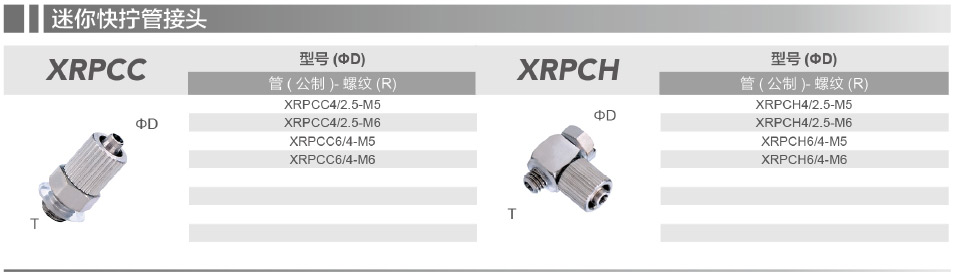

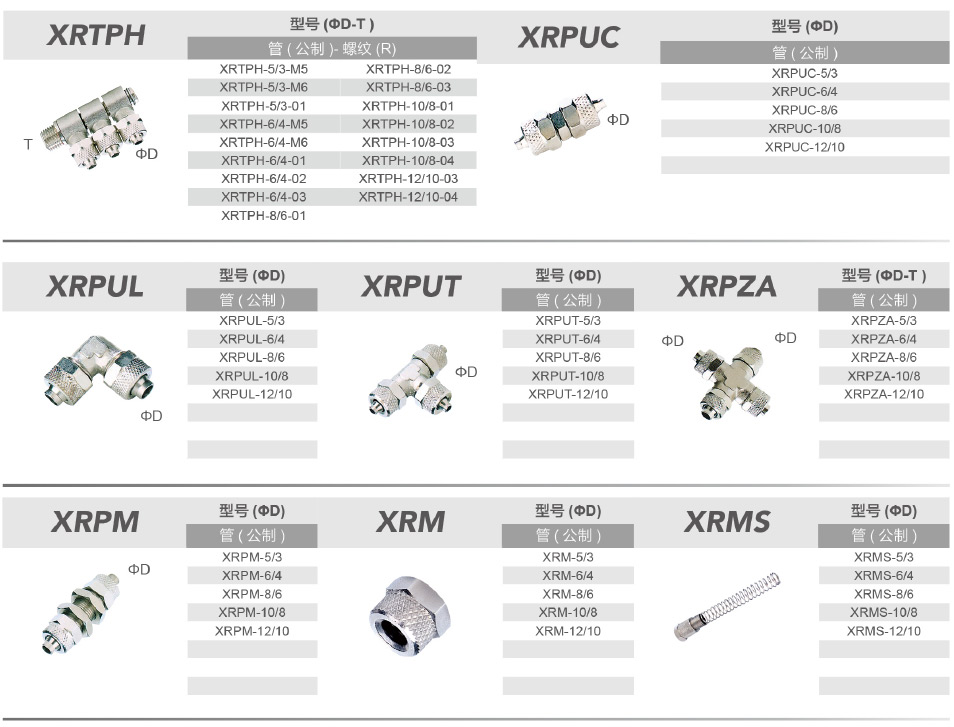

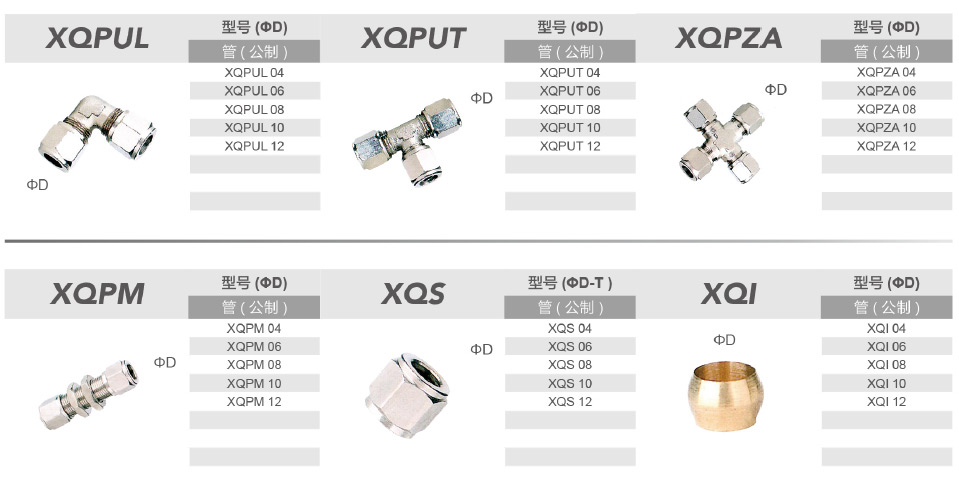

外形尺寸
